Image Formation by Lenses and the Eye

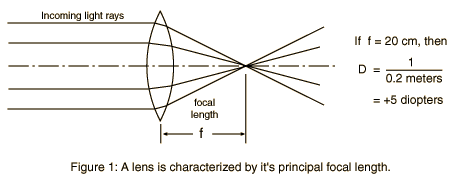

Image formation by a lens depends upon the wave property called refraction. Refraction may be defined as the bending of waves when they enter a medium where their speed is different. Since the speed of light is slower in a glass lens than in air, a light ray will be bent upon entering and upon exiting a lens in a way that depends upon the shape and curvature of the lens. In the case of a converging lens such as the double convex lens shown below, parallel rays will be brought together at a point.

The distance from the lens to this principal focus point is called the focal length of the lens and will be designated by the symbol f. A converging lens may be used to project an image of a lighted object. For example, the converging lens in a slide projector is used to project an image of a photographic slide on a screen, and the converging lens in the eye of the viewer in turn projects an image of the screen on the retina in the back of the eye.

This relationship will be used to determine the focal length of a glass lens, and will be used as the basis for a qualitative investigation of image formation by the eye with the use of a large eye model.

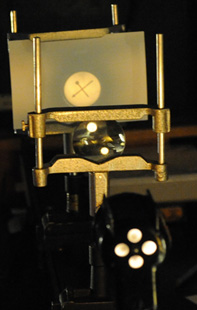

1. Position the lens and white screen on the optical bench and place them so that the distance from the lighted "object" to the lens can be measured on the bench scale. Adjust the screen to get a clear image.

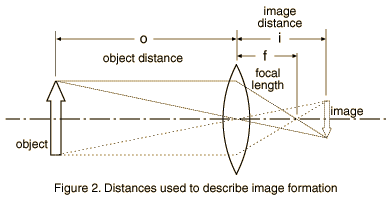

Determine the object distance and image distance, o and i, and calculate the focal length from the lens relationship. Describe the appearance of the image, compared to the object (e.g, larger, smaller, erect, inverted). Adjust the object distance to a different value and repeat the process with a different set of measurements. 确定物距和像距，o 和 i，并通过透镜关系计算焦距。描述像的外观，与物体相比（例如，更大、更小、正立、倒立）。将物距调整为不同值，重复这一过程并进行不同的测量。

2. What is the average of your focal length measurements, expressed in meters?

3. The lens strength in diopters is defined as S = 1/f(in meters). The unit is 1/m but this unit is commonly called a "diopter".

What is the strength of your lens in diopters?

Note: Converging lenses are listed as + and diverging lenses as - when diopter numbers are quoted. Prescriptions for eyeglasses are usually expressed in diopters.

I. Image formation by a lens; determination of focal length.

4. What is the diopter number of a lens of focal length 0.05 meters? What is the focal length of a +7 diopter lens?

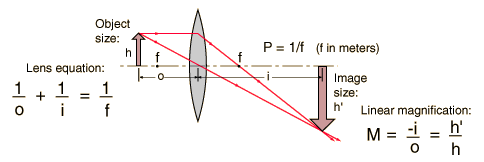

5. Using the average value of your focal length measurements, calculate the image distance i if the object distance is 1.5 x your focal length (e.g, if your measured focal length were 10 cm, you would do the calculation for an object distance of 15 cm). For this arrangement, the image distance and linear magnification of the image are given by

Measure the height of your object and predict the size of the image which would be formed with the object placed as described above. Now make the actual measurements of image distance and image size and compare them with your predictions.

II. Investigation of image formation by the eye.

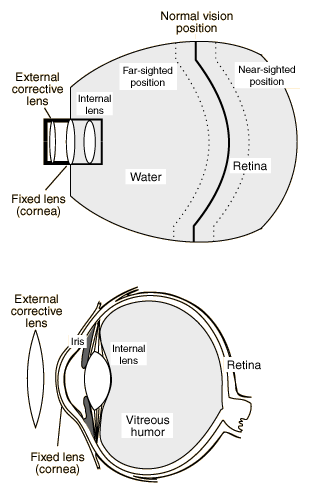

The figure shows a sketch of the eye model. At the beginning of the experiment the retina should be in the middle, or "normal eye" position. The model should be filled with water to a height which covers the fixed lens of the eye model. This fixed lens of the eye model represents the cornea. In addition to the cornea, the human eye has another internal lens.

1. Place the object light about two meters away from the eye model so that light passes through the eye's lens and falls on the retina. Find a lens to place in the holder inside the water of the eye model which will give you a clear image on the retina. This internal lens in the human eye has a variable focal length and is changed in shape to allow you to change your eye's focus from a distant object to a close one. This change of focus is called "accommodation".

Lens strength for sharp image at 2 meters: _________ 在2米处获得清晰图像的透镜度数：_______ 2. Move the object to a distance 35 cm from the front lens. To illustrate accommodation, and try to find a lens to replace the lens in the water which will again give you a clear image on the retina. Then make small adjustments in the object distance to get the sharpest possible image and record the object distance and lens strength needed to achieve it. 2. 将物体移动到距离前透镜35厘米的位置。为了说明调节功能，尝试找到一个可以替换水中透镜的透镜，使图像再次清晰地投射到视网膜上。然后对物体距离进行微小调整，以获得最清晰的图像，并记录所需的物体距离和透镜焦距。 Lens strength for sharp image at 35 cm : _________ 在35厘米处获得清晰图像时的透镜度数：_______ If you moved it away from 35 cm, record the data: 如果将其移离35厘米，记录数据： Distance for sharpest focus _____________ Lens strength ___________ 最清晰聚焦的距离 _____________ 透镜度数 ___________ Note: You should now have a clear image on the retina. The positions of the object and the eye model should be kept fixed for the next two steps of the experiment. 请注意：你现在应该能在视网膜上形成清晰的图像。物体的位置和眼模型的位置应保持固定，以便进行接下来的两个步骤。 3. To simulate far-sightedness (hyperopia), move the retina of the eye model to the forward position. The light rays should be seen to converge toward a point behind the retina. Find a corrective lens for this defect. (Lenses for correction must be positioned in the slots outside the eye model.). 为模拟远视（hyperopia），将眼模型的视网膜移至前方位置。光线应被看到在视网膜后方汇聚成一点。找到矫正这种缺陷的透镜。（矫正用的透镜必须放置在眼模型外部的槽中。） Diopter number for best correction ___________ 最佳矫正的屈光度数 _________

4. To simulate near-sightedness (myopia), move the retina to the rear. The light rays should be seen to converge toward a point in front of the retina. Find a corrective lens for this defect.

Corrective lens _______________

5. Remove the corrective lens from the front of the near-sighted eye model and replace it with the lens holder which has a metal plate with an aperture in it. Describe any changes in the image quality when this aperture is placed at the front of the eye model. Would a nearsighted person see clearer images in dim light or in bright light? Why do nearsighted persons squint?

6. The human eye is relaxed when it is focused on distant objects. From your experience in this lab, does the lens focal length approach a maximum or a minimum when your eye relaxes? Would this imply that the eye's lens is more rounded or less rounded when the eye muscle is relaxed?

Equipment: Image Formation

• Optical bench
  光学平台
• Converging lens and lens holder
  会聚透镜和透镜支架
• Illuminated image and optical bench stand to hold it.
  照明图像和用于支撑它的光学平台
• White card for screen and stand to hold card
  白卡用于屏幕和支架以固定卡片
• Eye model including lens set
  包含透镜组的眼睛模型
• Large illuminated object for eye model.
  用于眼模型的大型发光物体
