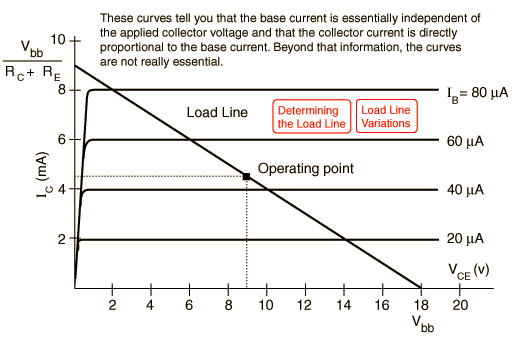

Transistor Characteristic Curves晶体管特性曲线
(Approximate for 2N2222)(近似值适用于2N2222)
![]() |
Index Electronics concepts 索引电子学概念 | ||
|
Go Back
返回 |

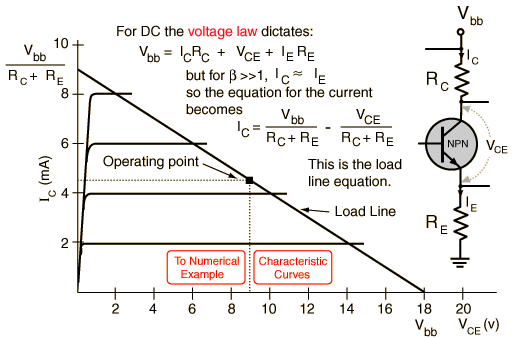

Transistor Load Line晶体管负载线
(Approximate for 2N2222)(近似值适用于2N2222)
![]() |
Index Electronics concepts 索引电子学概念 | ||
|
Go Back
返回 |

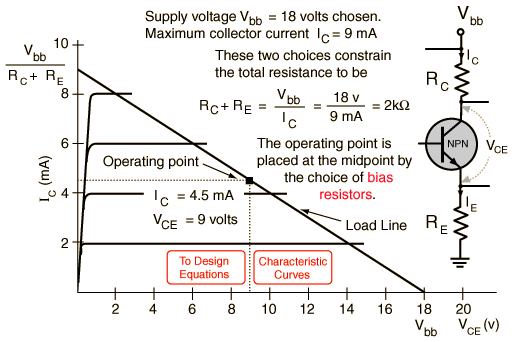

Transistor Load Line晶体管负载线
(Approximate for 2N2222)(近似值适用于2N2222)
![]() |
Index Electronics concepts 索引电子学概念 | ||
|
Go Back
返回 |

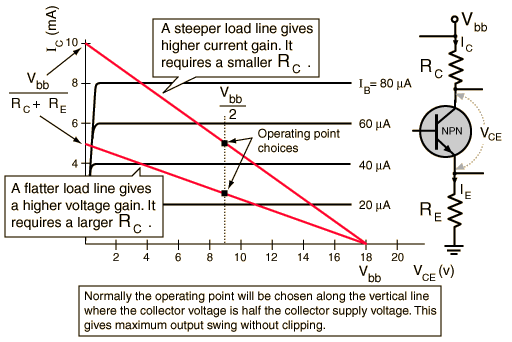

Transistor Load Line Variations晶体管负载线变化
(Approximate for 2N2222)(近似值适用于2N2222)
![]()
|
