Op-Amp Switching

运算放大器开关

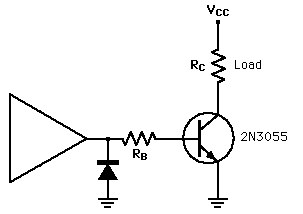

An op-amp may be used instead of a mechanical switch to operate a transistor switch. The diode is used for protection of the base-emitter junction in case the op-amp swings to its negative supply voltage.

运算放大器可以用来代替机械开关来操作晶体管开关。二极管用于在运算放大器 swings 到负电源电压时保护基极-发射极结。
