AND Gate

与门

The output is high only when both inputs A and B are high.

输出仅在A和B都为高时才为高。
How do you make one?
你怎么造一个？
IC Example: IC 7408
IC 示例：IC 7408


Basic Gates
基本逻辑门
 Index

Electronics concepts

Digital Circuits
索引 电子学概念 数字电路

HyperPhysics*****Electricity and magnetism
HyperPhysics ***** 电磁学
R Nave
 Go Back
返回









Making an AND Gate

制作一个与门

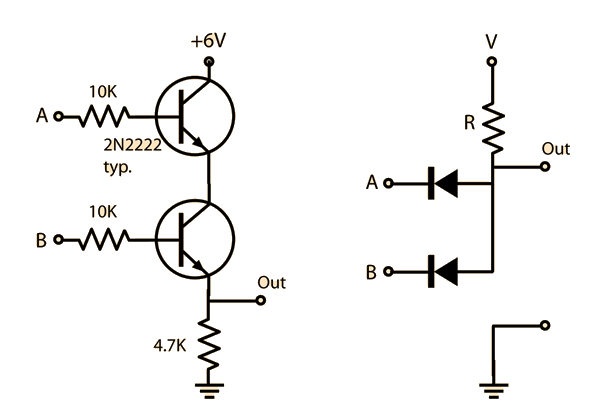

These are ways to make an AND gate from transistor switches or diodes.

这些是通过晶体管开关或二极管来制作与门的方法。
Basic Gates
基本逻辑门
 Index

Electronics concepts

Digital Circuits
索引 电子学概念 数字电路

HyperPhysics*****Electricity and magnetism
HyperPhysics ***** 电磁学
R Nave
 Go Back
返回









IC7408 AND Gates

IC7408 与门

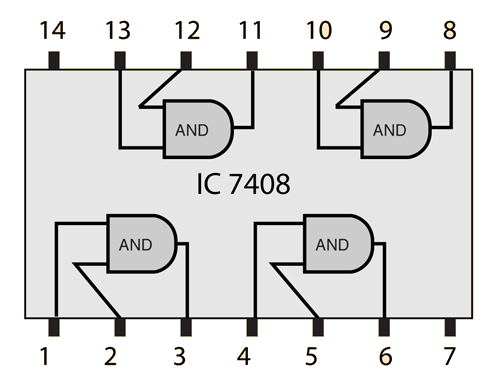

This is an example of convenient packaging of AND gates in integrated circuit form.

这是集成电路形式中方便封装的与门示例。
