Buffer

缓冲

The buffer is a single-input device which has a gain of 1, mirroring the input at the output. It has value for impedance matching and for isolation of the input and output.

缓冲器是一个单输入设备，其增益为1，输出端镜像输入端。它在阻抗匹配和输入输出端的隔离方面具有价值。
How do you make one?
你怎么造一个？


Basic Gates
基本逻辑门
 Index

Electronics concepts

Digital Circuits
索引 电子学概念 数字电路

HyperPhysics*****Electricity and magnetism
HyperPhysics ***** 电磁学
R Nave
 Go Back
返回









Making a Buffer

制作缓冲液

The basic emitter follower can be used as a buffer.

基本的射随放大器可以作为缓冲器使用

An op-amp voltage follower can serve as a buffer.

运算放大器电压跟随器可以作为缓冲器
Basic Gates
基本逻辑门
 Index

Electronics concepts

Digital Circuits
索引 电子学概念 数字电路

HyperPhysics*****Electricity and magnetism
HyperPhysics ***** 电磁学
R Nave
 Go Back
返回









Inverting Buffer

反相器

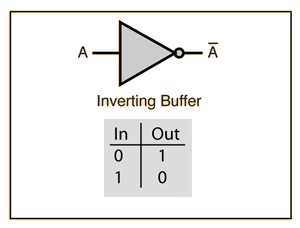

The inverting buffer is a single-input device which produces the state opposite the input. If the input is high, the output is low and vice versa.
