NPN Common Collector Amplifier

NPN共集电极放大器
NPN
PNP
Menu
菜单
Common Emitter
共射极
Common Collector
共集电极
Common Base
共射极

The common collector amplifier, often called an emitter follower since its output is taken from the emitter resistor, is useful as an impedance matching device since its input impedance is much higher than its output impedance. It is also termed a "buffer" for this reason and is used in digital circuits with basic gates.

由于其输入阻抗远高于输出阻抗,共集电极放大器(也称为射极跟随器,因其输出从射极电阻取得)常被用作阻抗匹配装置。因此它也被称为‘缓冲器’,并在基本门电路中用于数字电路。
Emitter Follower Discussioin
发射跟随讨论
Practical Common Collector
实用共集电极
Index

Electronics concepts
索引电子学概念

HyperPhysics*****Electricity and magnetism
HyperPhysics ***** 电磁学
R Nave
Go Back
返回













Emitter Follower Discussion

射极跟随器讨论

The common collector junction transistor amplifier is commonly called an emitter follower. The voltage gain of an emitter follower is just a little less than one since the emitter voltage is constrained at the diode drop of about 0.6 volts below the base . Its function is not voltage gain but current or power gain and impedance matching. It's input impedance is much higher than its output impedance so that a signal source does not have to work so hard. This can be seen from the fact that the base current in on the order of 100 times less that the emitter current. The low output impedance of the emitter follower matches a low impedance load and buffers the signal source from that low impedance.

常见的共集电极晶体管放大器通常称为射极跟随器。射极跟随器的电压增益略低于1,因为射极电压被限制在基极电压约0.6伏的降压之下。其功能不是电压增益,而是电流增益或功率增益和阻抗匹配。其输入阻抗远高于输出阻抗,因此信号源不需要付出太多努力。这可以从基极电流大约是射极电流的100倍这一事实看出。射极跟随器的低输出阻抗与低阻抗负载相匹配,并且可以缓冲信号源免受该低阻抗的影响。
Junction Transistor Amplifiers
结型晶体管放大器
Emitter Follower Applications
射极跟随器应用
Feedback in the Emitter Follower
发射跟随器中的反馈
Index

Electronics concepts
索引电子学概念

HyperPhysics*****Electricity and magnetism
HyperPhysics ***** 电磁学
R Nave
Go Back
返回

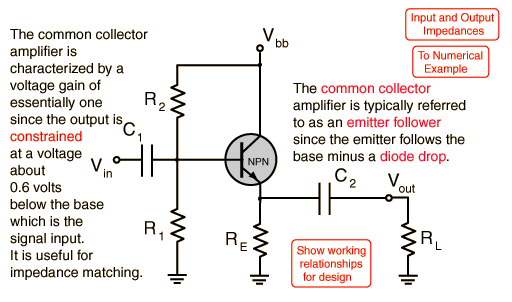

NPN Common Collector Amplifier

NPN共集电极放大器
Junction Transistor Amplifiers
结型晶体管放大器
Index

Electronics concepts
索引电子学概念

HyperPhysics*****Electricity and magnetism
HyperPhysics ***** 电磁学
R Nave
Go Back
返回

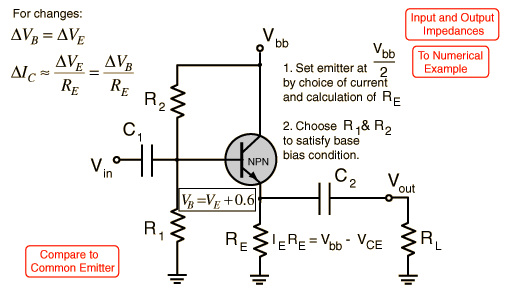

NPN Common Collector Design

NPN共集电极设计
Junction Transistor Amplifiers
结型晶体管放大器
Index

Electronics concepts
索引电子学概念

HyperPhysics*****Electricity and magnetism
HyperPhysics ***** 电磁学
R Nave
Go Back
返回

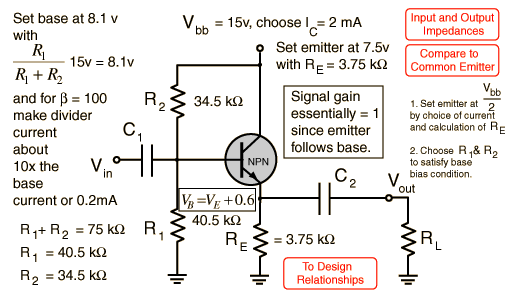

NPN Common Collector Design

NPN共集电极设计
