OR Gate

或门

The output is high when either or both of inputs A or B is high. This is logically different from the exclusive OR

当输入A或B中有一个或两个为高时，输出为高。这在逻辑上与异或不同。
How do you make one?
你怎么造一个？
IC Example: IC 7432
IC 示例：IC 7432


Basic Gates
基本逻辑门
 Index

Electronics concepts

Digital Circuits
索引 电子学概念 数字电路

HyperPhysics*****Electricity and magnetism
HyperPhysics ***** 电磁学
R Nave
 Go Back
返回









Making an OR Gate

制作或门

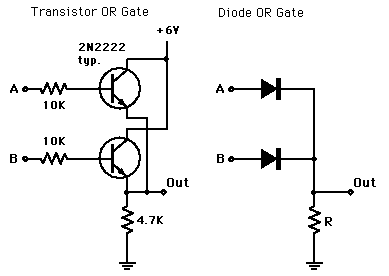

These are ways to make an OR gate from transistor switches or diodes.

这些是用晶体管开关或二极管制作或门的方法。
Basic Gates
基本逻辑门
 Index

Electronics concepts

Digital Circuits
索引 电子学概念 数字电路

HyperPhysics*****Electricity and magnetism
HyperPhysics ***** 电磁学
R Nave
 Go Back
返回









IC 7432 OR Gates

IC 7432 或门

This is an example of convenient packaging of OR gates in integrated circuit form.

这是集成电路形式中或门方便封装的例子。
