Bilingual edition: English is preserved and Chinese follows each unit. Terminology uses the confirmed v20260916 glossary; automated semantic review remains traceable.
中英双语版：英文原文完整保留，中文紧随对应单元；术语采用 v20260916 确认表，自动语义审校结果可追溯。

Exclusive OR Gate

异或门

The output is high when either of inputs A or B is high, but not if both A and B are high.

当A或B任一为高电平时，输出为高，但若A和B同时为高电平，则输出不为高。
How do you make one?
你怎么造一个？
IC Example: IC 7486
IC 示例：IC 7486


Basic Gates
基本逻辑门
 Index
Reference:

Tocci,
Sec 4-6

Electronics concepts

Digital Circuits
索引参考：Tocci，第4-6节 电子学概念 数字电路

HyperPhysics*****Electricity and magnetism
HyperPhysics ***** 电磁学
R Nave
 Go Back
返回









Exclusive OR Gate

异或门

Logically, the exclusive OR (XOR) operation can be seen as either of the following operations:

逻辑上，异或（XOR）操作可以被视为以下两种操作之一：
        A AND NOT B OR B AND NOT A
A 且非 B 或 B 且非 A
    A OR B AND NOT A AND B
A 或 B 且非 A 且 B

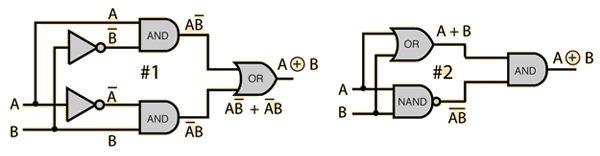

which can be implemented by the gate arrangements shown. They can also be implemented using NAND gates only.

这可以通过所示的逻辑门安排来实现。它们也可以仅使用NAND门来实现。
Basic Gates
基本逻辑门
 Index
Reference:

Horowitz & Hill,
Sec 8-12

Electronics concepts

Digital Circuits
索引参考：Horowitz & Hill，第8-12节 电子概念 数字电路

HyperPhysics*****Electricity and magnetism
HyperPhysics ***** 电磁学
R Nave
 Go Back
返回









Exclusive OR with NAND

与NAND的异或运算

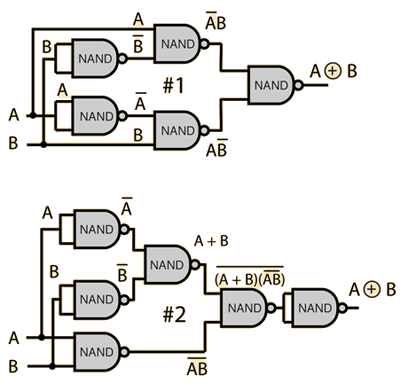

The implementation of the exclusive OR (XOR) operation with just NAND gates illustrates the function of NANDs as universal gates.

仅用NAND门实现异或（XOR）运算，展示了NAND门作为通用门的功能。


A AND NOT B OR B AND NOT A

A 且非 B 或 B 且非 A


A OR B AND NOT A AND B

A 或 B 且非 A 且 B
DeMorgan's Theorem
德摩根定理
Basic Gates
基本逻辑门
 Index

Horowitz & Hill,
Ch 8

Electronics concepts

Digital Circuits
索引 Horowitz & Hill，第8章 电子概念 数字电路

HyperPhysics*****Electricity and magnetism
HyperPhysics ***** 电磁学
R Nave
 Go Back
返回

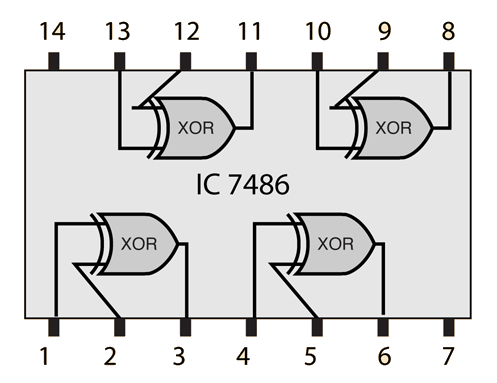

IC 7486 Exclusive-OR

IC 7486 异或

This is an example of convenient packaging of XOR gates in integrated circuit form.

这是集成电路形式中方便封装的XOR门的一个例子。
