NAND Gate

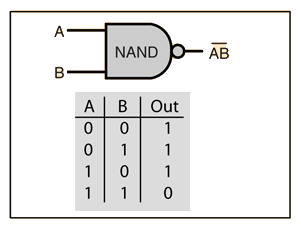

The output is high when either of inputs A or B is high, or if neither is high. In other words, it is normally high, going low only if both A and B are high.

The NAND gate and the NOR gate can be said to be universal gates since combinations of them can be used to accomplish any of the basic operations and can thus produce an inverter, an OR gate or an AND gate. The non-inverting gates do not have this versatility since they can't produce an invert. NAND门和NOR门可以被称为通用门，因为它们的组合可以实现任何基本运算，并因此可以产生一个反相器、一个或门或一个与门。非反相门不具备这种通用性，因为它们无法产生反相。

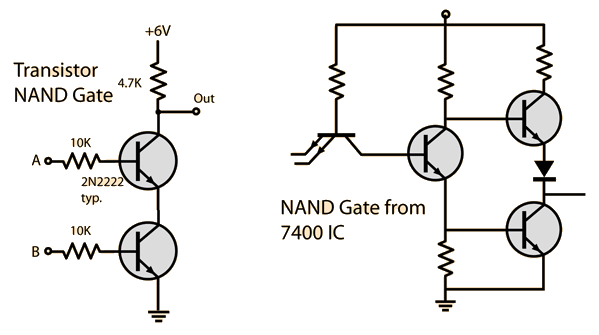

Making a NAND Gate

Click on either for more detail

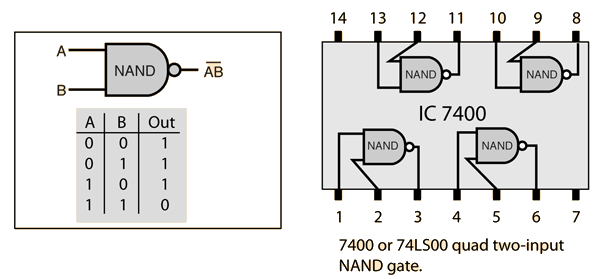

IC 7400 Quad NAND Gate

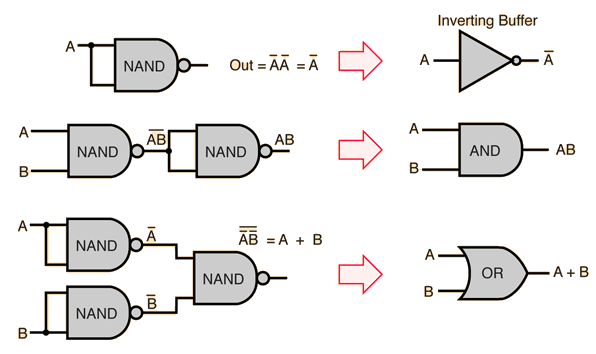

NAND Gate Operations

The NAND gate is called a universal gate because combinations of it can be used to accomplish all the basic functions.

NAND Gate Application

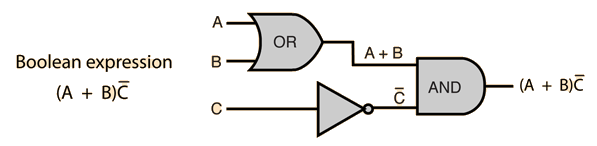

Suppose you want a high output when either A or B is high but C is low. The boolean expression and straightforward gate version of this are:

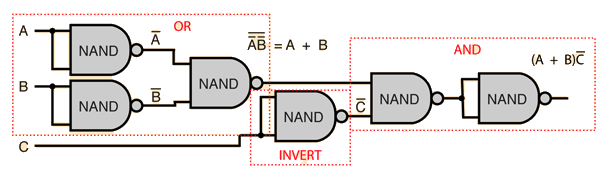

But the same task can be accomplished with NAND gates only since NAND's are universal gates. Integrated circuits such as the 7400 make this practical.
