Damped Harmonic Oscillator

Damping coefficient 阻尼系数 Undamped oscillator 未阻尼振荡器 Driven oscillator 驱动振子

The Newton's 2nd Law motion equation is 牛顿第二定律的运动方程是 This is in the form of a homogeneous second order differential equation and has a solution of the form 这是一个一阶二阶的齐次微分方程，其解形式为 Substituting this form gives an auxiliary equation for λ The roots of the quadratic auxiliary equation are 将此形式代入可得到一个辅助方程 for λ。该二次辅助方程的根为 The three resulting cases for the damped oscillator are 阻尼振子的三种情况是

Damping Coefficient

When a damped oscillator is subject to a damping force which is linearly dependent upon the velocity, such as viscous damping, the oscillation will have exponential decay terms which depend upon a damping coefficient. If the damping force is of the form

then the damping coefficient is given by

This will seem logical when you note that the damping force is proportional to c, but its influence inversely proportional to the mass of the oscillator.

Underdamped Oscillator

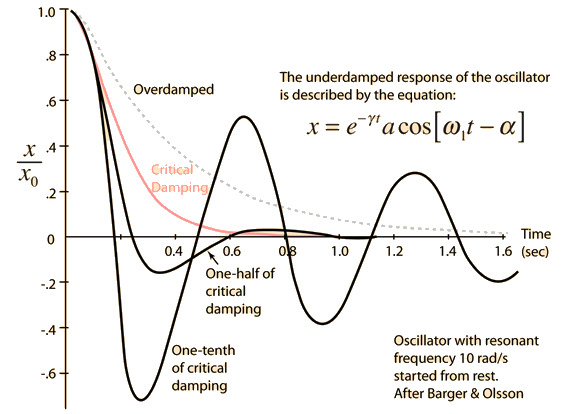

For any value of the damping coefficient γ less than the critical damping factor the mass will overshoot the zero point and oscillate about x=0. The behavior is shown for one-half and one-tenth of the critical damping factor. Also shown is an example of the overdamped case with twice the critical damping factor.

Note that these examples are for the same specific initial conditions, i.e., a release from rest at a position x₀. For other initial conditions, the curves would look different, but the the behavior with time would still decay according to the damping factor.

Underdamped Oscillator

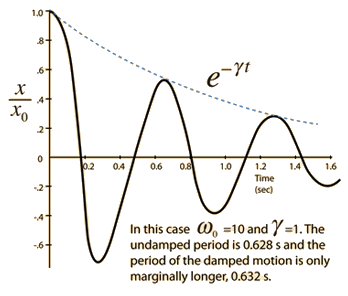

The equation is that of an exponentially decaying sinusoid. 该方程为指数衰减正弦波的方程。 The damping coefficient is less than the undamped resonant frequency . The sinusoid frequency is given by 阻尼系数小于未阻尼共振频率。正弦波频率由 but the motion is not strictly periodic. 但这种运动并不是严格周期性的。
