The T Flip-Flop

T触发器

The T or "toggle" flip-flop changes its output on each clock edge, giving an output which is half the frequency of the signal to the T input.

T型或‘翻转’触发器在每个时钟边沿改变其输出，其输出频率是T输入信号频率的一半。
It is useful for constructing binary counters, frequency dividers, and general binary addition devices. It can be made from a J-K flip-flop by tying both of its inputs high.

Construction of T flip-flop from a J-K flip-flop.

由JK触发器构造T触发器
Flip-Flops
翻转器
它对构建二进制计数器、频率分割器和通用二进制加法器很有用。它可以由一个J-K触发器通过将两个输入端均接高电平来实现。
 Index

Electronics concepts

Digital circuits

Sequential Operations
索引 电子学概念 数字电路 顺序操作

HyperPhysics*****Electricity and magnetism
HyperPhysics ***** 电磁学
R Nave
 Go Back
返回

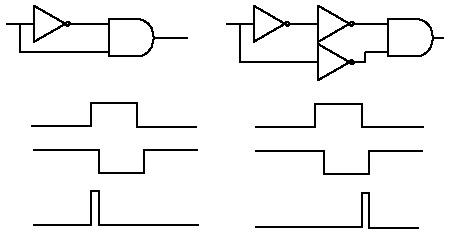

Edge Detector Circuits

边缘检测电路
