J-K Flip-Flop

The J-K flip-flop is the most versatile of the basic flip-flops. It has the input- following character of the clocked D flip-flop but has two inputs,traditionally labeled J and K. If J and K are different then the output Q takes the value of J at the next clock edge. The inputs are labeled J and K in honor of the inventor of the device, Jack Kilby. J-K触发器是基本触发器中最为灵活的一种。它具有时钟触发D触发器的输入跟随特性，但有两个输入，通常标记为J和K。如果J和K不同，则在下一个时钟边沿时，输出Q取J的值。输入J和K的命名是为了向该器件的发明者杰克·基尔比致敬。 Examine Structure 检查结构 Applications 应用

If J and K are both low then no change occurs. If J and K are both high at the clock edge then the output will toggle from one state to the other. It can perform the functions of the set/reset flip-flop and has the advantage that there are no ambiguous states. It can also act as a T flip-flop to accomplish toggling action if J and K are tied together. This toggle application finds extensive use in binary counters.

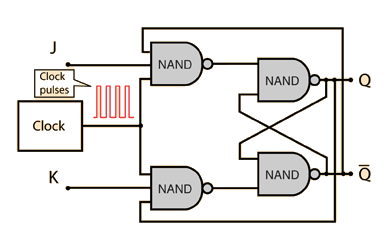

J-K Flip-Flop Structure

A simplified version of the versatile J-K flip-flop. Note that the outputs feed back to the enabling NAND gates. This is what gives the toggling action when J=K=1. 一种简化的J-K触发器。请注意，输出反馈到使能的NAND门。正是这种反馈使得当J=K=1时产生翻转作用。

While this implementation of the J-K flip-flop with four NAND gates works in principle, there are problems that arise with the timing. The timing pulse must be very short because a change in Q before the clock pulse goes off can drive the circuit into an oscillation called "racing". Modern ICs are so fast that this simple version of the J-K flip-flop is not practical (we put one together in the lab with an available 4-NAND chip and it was very unstable against racing).

The next step in making use of the versatile J-K flip-flop is to use four additional NAND gates to create the Master-Slave JK Flip Flop which has two gated SR flip flops used as latches in a way that suppresses the "racing".

Switching Example 开关示例 Flip-Flops 翻转器

Switching Example: Master-Slave J-K Flip-Flop

The positive going transition (PGT) of the clock enables the switching of the output Q. The "enable" condition does not persist through the entire positive phase of the clock. The J & K inputs alone cannot cause a transition, but their values at the time of the PGT determine the output according to the truth table. This is an application of the versatile J-K flip-flop. Since this 4-NAND version of the J-K flip-flop is subject to the "racing" problem, the Master-Slave JK Flip Flop was developed to provide a more stable circuit with the same function. 时钟的上升沿（PGT）使输出Q发生切换。'使能'条件并不持续整个时钟的正相期间。J和K输入单独不能引起切换，但它们在PGT时刻的值决定了输出，根据真值表。这是J-K触发器的典型应用。由于这种4个NAND构成的J-K触发器存在'竞争'问题，因此开发了主从J-K触发器，以提供具有相同功能但更稳定的电路。

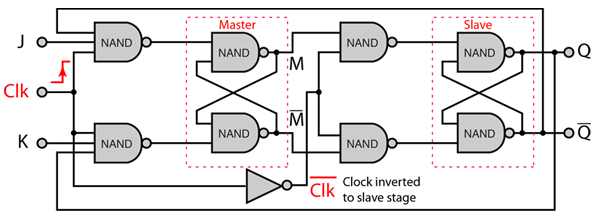

The Master-Slave JK Flip Flop has two gated SR flip flops used as latches in a way that suppresses the "racing" or "race around" behavior. Another way to look at this circuit is as two J-K flip-flops tied together with the second driven by an inverted clock signal.

When the clock makes a positive transition the master section is triggered but the slave section is not because its clock is inverted. At a half cycle of the clock, on the downward transition, the inverted clock has a positive transition and triggers the slave section. The final output Q then tracks the output of the master section M after a half cycle of the clock.

J-K Flip-Flop Data Transfer

In synchronous data transfer between two J-K flip-flops, a transfer signal on the clock input causes transfer from cell A to cell B. The transfer signal could be applied to several such cells in series to create a shift register. 在两个J-K触发器之间的同步数据传输中，时钟输入上的传输信号会导致从cell A传输到cell B。该传输信号可以应用于多个这样的cell，以形成移位寄存器。

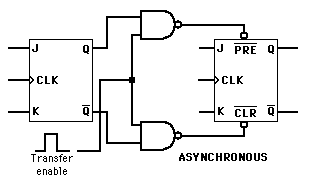

In asynchronous data transfer, a transfer pulse may be applied at any time to force the data onto the asychronous set and clear inputs, storing the data regardless of what is happening on the other inputs. 在异步数据传输中，可以在任何时间施加一个传输脉冲以力将数据加载到异步的置位和复位输入上，无论其他输入的状态如何，数据都会被存储。

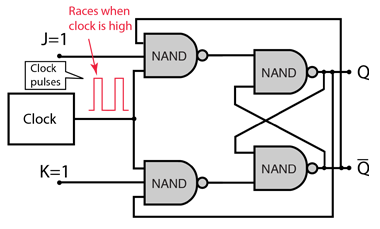

J-K Flip-Flop Instability or "Racing"

A simplified version of the versatile J-K flip-flop. Note that the outputs feed back to the enabling NAND gates. This is what gives the toggling action when J=K=1. The toggling might be a desired behavior, but generally you would like for the times of toggling to be controlled by the clock pulses as enablers so that you could control and predict the output. J-K触发器的一种简化版本。请注意，输出反馈到使能的NAND门。正是这种反馈使得当J=K=1时产生翻转动作。翻转可能是一种期望的行为，但通常你希望翻转的次数由时钟脉冲作为使能信号来控制，以便能够控制和预测输出。

For this version of the J-K flip-flop under the input conditions J=K=1 the toggling would be enabled anytime the clock has value 1, and the toggling rate would be determined by the propagation delay around the circuit. The value of the output at any time would not be predictable from the clock state. This is called "racing" or the "race-around condition". This uncontrolled toggling can be suppressed by using the master-slave arrangement where the transmission of the J value to the output is delayed by half a clock cycle and not immediately fed back to the input side.
