Aberrations In an ideal optical system, all rays of light from a point in the object plane would converge to the same point in the image plane, forming a clear image. The influences which cause different rays to converge to different points are called aberrations. Summary of aberrations and corrections	Index Lens concepts
HyperPhysics***** Light and Vision R Nave	Go Back

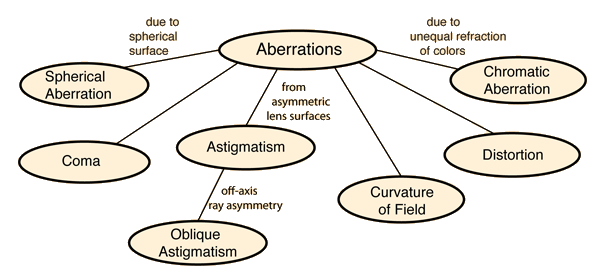

Summary of Aberrations In an ideal optical system, all rays of light from a point in the object plane would converge to the same point in the image plane, forming a clear image. The influences which cause different rays to converge to different points are called aberrations. Aberration Character Correction 1. Spherical aberration Monochromatic, on- and off- axis, image blur Bending, high index, aspherics, gradient index, doublet
2. Coma	Monochromatic, off-axis only, blur	Bending, spaced doublet with central stop
3. Oblique astigmatism	Monochromatic, off-axis blur	Spaced doublet with stop
4. Curvature of field	Monochromatic, off-axis	Spaced doublet
5. Distortion	Monochromatic, off-axis	Spaced doublet with stop
6. Chromatic aberration	Heterochromatic, on- and off-axis, blur	Contact doublet, spaced doublet
