Quantum Processes量子过程
Quantum properties dominate the fields of atomic and molecular physics. Radiation is quantized such that for a given frequency of radiation, there can be only one value of quantum energy for the photons of that radiation. The energy levels of atoms and molecules can have only certain quantized values. Transitions between these quantized states occur by the photon processes absorption, emission, and stimulated emission. All of these processes require that the photon energy given by the Planck relationship is equal to the energy separation of the participating pair of quantum energy states. 量子特性主导着原子物理和分子物理领域。辐射被量化,即对于给定频率的辐射,其光子的量子能量只能有一个值。原子和分子的能量级只能具有某些量化的值。这些量化的状态之间通过光子过程(吸收、发射和受激发射)发生跃迁。所有这些过程都要求光子的能量由普朗克关系给出,等于参与跃迁的量子能量状态之间的能量差。
![]() Interaction of radiation with matter辐射与物质的相互作用 Electromagnetic spectrum电磁谱 |
Index
索引 | ||
|
Go Back
返回 |
Absorption and Emission吸收与发射
Taking the electron transitions associated with visible and ultraviolet interactions with matter as an example, absorption of a photon will occur only when the quantum energy of the photon precisely matches the energy gap between the initial and final states. In the interaction of radiation with matter, if there is no pair of energy states such that the photon energy can elevate the system from the lower to the upper state, then the matter will be transparent to that radiation. 以电子在可见光和紫外光与物质相互作用中的跃迁为例,只有当光子的量子能量精确对应初始态和终态之间的能量差时,才会发生光子的吸收。在辐射与物质的相互作用中,如果不存在这样的能量态对,使得光子能量能够将系统从低能态提升到高能态,那么物质将对这种辐射透明。
![]() Energy levels associated with molecules, atoms and nuclei are in general discrete, quantized energy levels and transitions between those levels typically involve the absorption or emission of photons. Electron energy levels have been used as the example here, but quantized energy levels for molecular vibration and rotation also exist. Transitions between vibrational quantum states typically occur in the infrared and transitions between rotational quantum states are typically in the microwave region of the electromagnetic spectrum. 与分子、原子和核相关的能级通常为离散的、量化的能级,这些能级之间的跃迁通常涉及光子的吸收或发射。这里以电子能级为例,但分子振动和旋转的量化能级也存在。振动量子态之间的跃迁通常发生在红外区域,而旋转量子态之间的跃迁则通常位于电磁波谱的微波区域。
It is possible for excited electrons in atoms and molecules to have some other kind of interaction which lowers their energy before they can make a downward transition. In that case they would emit a photon of lower energy and longer wavelength. This process is called fluorescence if it happens essentially instantaneously. It is also possible that material can hold onto the energy of excitation for a long time, gradually making downward transitions with emission. This delayed emission is called phosphorescence. Since by the Einstein A and B coefficients we know that the probabilities for absorption and emission are the same, the existence of phosphorescence would imply that some interaction took place quickly after the initial absorption that placed the electrons in a much more stable and long-lived state so that they could not immediately drop back down. 原子和分子中的激发电子可能有其他类型的相互作用,使它们在能够向下跃迁之前降低能量。在这种情况下,它们会发出能量较低、波长较长的光子。这个过程称为荧光,如果它几乎立即发生的话。也有可能材料能长时间保留激发能量,逐渐进行向下跃迁并发出光子。这种延迟的发光称为磷光。由于通过爱因斯坦A和B系数我们知道吸收和发射的概率是相同的,因此磷光的存在意味着在初始吸收后发生了快速的相互作用,将电子置于一个更加稳定且寿命更长的状态,使它们无法立即回到较低能级。
|
Index
索引 | ||
|
Go Back
返回 |
Stimulated Emission受激发射

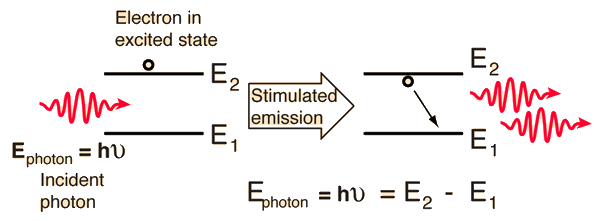

If an electron is already in an excited state (an upper energy level, in contrast to its lowest possible level or "ground state"), then an incoming photon for which the quantum energy is equal to the energy difference between its present level and a lower level can "stimulate" a transition to that lower level, producing a second photon of the same energy.
![]() When a sizable population of electrons resides in upper levels, this condition is called a "population inversion", and it sets the stage for stimulated emission of multiple photons. This is the precondition for the light amplification which occurs in a laser, and since the emitted photons have a definite time and phase relation to each other, the light has a high degree of coherence. ![]() Like absorption and emission, stimulated emission requires that the photon energy given by the Planck relationship be equal to the energy separation of the participating pair of quantum energy states. 如同吸收和发射一样,受激发射要求由普朗克关系给出的光子能量等于参与的量子能态对的能量差。
Interaction of radiation with matter辐射与物质的相互作用
如果电子已经处于激发态(一个较高的能量水平,与它的最低可能水平或'基态'相对),那么当一个入射光子的量子能量等于其当前水平与较低水平之间的能量差时,该电子可以'刺激'跃迁到较低的水平,产生一个能量相同的第二个光子。当大量电子处于较高水平时,这种条件称为'粒子数反转',它为受激发射多个光子奠定了基础。这是激光中发生光放大所必需的条件,由于发射的光子之间有确定的时间和相位关系,因此光具有高度的相干性。 |
Index Laser concepts 索引激光概念 | ||
|
Go Back
返回 |
Fluorescence荧光

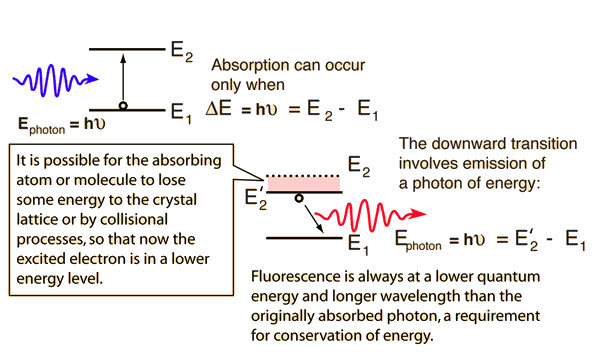

If a high energy photon is absorbed by an atom or molecule by exciting an electron and then quickly undergoes some interaction with the crystal lattice or some collisional process, the excited electron can be transferred to a lower quantum state. If the electron then makes a transition back to its original state, then the photon emitted will be of lower photon energy and longer wavelength. 如果高能光子被原子或分子激发一个电子,并随后迅速与晶体晶格或碰撞过程相互作用,该激发的电子可以转移到较低的量子态。如果电子随后再回到原来的状态,那么发射的光子将具有较低的光子能量和较长的波长。 ![]() There are many useful applications of fluorescence. The common "fluorescent lighting" makes use of the fact that certain phosphors will fluoresce at numerous wavelengths in the visible light range when they are bombarded with light in the ultraviolet. Since the mercury vapor in fluorescent lights has strong emission in the ultraviolet when electrically excited, that UV light can cause the phosphor coatings on the tubes to fluoresce in the visible, producing a light source much more efficient than incandescent lights. 荧光有多种有用的应用。常见的‘荧光灯’利用了这样一个事实:当某些荧光材料被紫外光照射时,会在可见光范围内发出多种波长的荧光。由于荧光灯中的汞蒸气在被电激发时会强烈发射紫外光,这种紫外光可以促使灯管表面的荧光涂层发出可见光,从而产生比白炽灯效率更高的光源。
Many minerals fluoresce and you can see a visible glow when you illuminate them with ultraviolet light. Fluorescence can be a useful tool for the study of minerals. With some systems you can do extensive fluorescence spectroscopy by bombarding with high energy photons and measuring the spectrum of light produced by fluorescence. Often xrays are used as a source and the photons emitted by fluorescence in the UV and visible are studied. 许多矿物会荧光,在用紫外光照射时可以看到明显的发光现象。荧光可以作为研究矿物的有用工具。在某些系统中,可以通过用高能光子轰击来进行广泛的荧光光谱分析,并测量由荧光产生的紫外和可见光的光谱。通常使用X射线作为光源,研究由荧光产生的紫外和可见光的光谱。
Many types of butterflies are fluorescent and will glow in the visible when illuminated with ultraviolet light. Fluorescence can cause objects to appear brighter if short wavelength light is absorbed and they give the light back by fluorescence at longer wavelengths. Some kinds of whitening agents for clothing make use of this principle - the detergent may have a fluroescent agent in it which picks up the short wavelength part of sunlight and reemits it by fluorescence in the longer wavelength visible range. 许多种类的蝴蝶是荧光的,当用紫外光照射时,它们会发出可见光。荧光可以使物体在短波长光被吸收后,通过荧光发射出长波长的光而显得更亮。某些用于衣物去渍的漂白剂利用了这一原理——洗衣剂中可能含有荧光剂,它会吸收阳光中的短波长部分,并通过荧光发射出长波长的可见光。
|
