Gravitational Waves

Great excitement about the opening of a new era in the observation of the universe has been generated by the first detection of gravitational waves by the LIGO interferometers on September 14, 2015 at 5:51 a.m. Eastern Daylight Time. This image posted on the Cal Tech site will undoubtedly be an icon for the new field of observation.

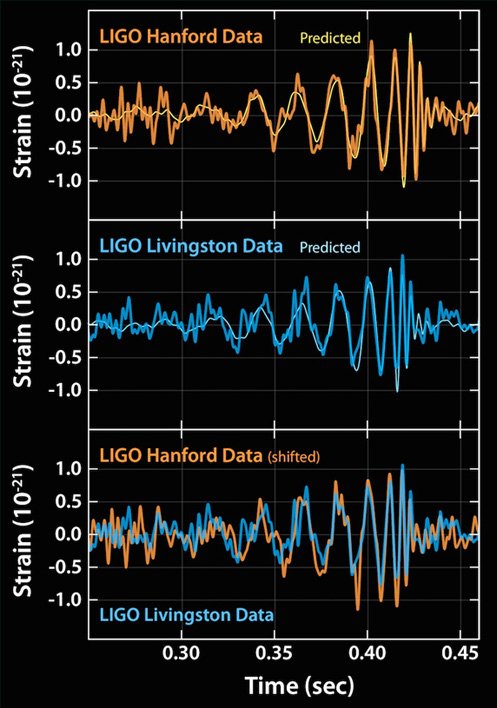

These are plots of the signals received by the two LIGO interferometers at Hanford, Washington and Livingston, Louisiana. The two signals were in excellent agreement but separated in time, reaching Hanford 0.007 seconds after detection in Livingston. Corresponding to a distance difference of about 2000 km at the speed of light, this is consistent with the idea that the exchange particle, the graviton, associated with gravity is massless and therefore the gravity wave travels at the speed of light. 这些图显示了汉福德，华盛顿和路易斯安那州利文斯顿两个LIGO干涉仪接收到的信号。两个信号在时间上有所差异，汉福德接收到的信号比利文斯顿检测到的信号晚0.007秒。对应光速下约2000公里的距离差，这与重力子（与重力相关的交换粒子）无质量，因此重力波以光速传播的观点一致。

Image Courtesy Caltech/MIT/LIGO Laboratory

If an analogy with sound waves were used to describe the signals shown above, you might describe it as a "chirp" since the frequency starts out low and increases until its termination. The initial model of the source of this signal is that of two black holes of masses about 29 and 36 solar masses orbiting each other until they coalesce into a single black hole of mass about 62 solar masses. This would correspond to the conversion of about 3 solar masses into energy during this brief event, described on the Caltech site as having a "peak power output about 50 times that of the whole visible universe".

Although the projected distance has large error bars, the most probable distance is about 1.3 x 10⁹ light years.

References:
Cal Tech, image of data

Caltech news release, February 11, 2016

LIGO Educator's Guide

Einstein and Gravity Waves

This is a brief description of gravity waves from the LIGO Educator's Guide : "Gravitational waves are 'ripples' in the fabric of spacetime caused by accelerating masses such as colliding black holes, exploding stars, and even the birth of the universe itself. Albert Einstein predicted the existence of gravitational waves in 1916, derived from his General Theory of Relativity. Einstein's mathematics showed that massive accelerating objects would disrupt spacetime in such a way that waves of distorted space would radiate from the source. These ripples travel at the speed of light through the universe, carrying information about their origins, as well as clues to the nature of gravity itself.

Two black holes in mutual orbit will revolve around each other emitting gravitational waves and losing orbital energy as illustrated at right. Over time, the energy loss causes the stars to move closer together and orbit around each other faster and faster until they eventually merge together, or coalesce. This type of merger has never before been directly observed, and it is the type of event that emitted the gravitational waves detected by LIGO on September 14, 2015. 两个相互绕行的黑洞会通过发射引力波而损失轨道能量，如图所示。随着时间的推移，这种能量损失会使它们彼此靠近，绕行速度加快，最终合并在一起，或发生合并。这种类型的合并此前从未被直接观测到，而正是这种事件发出了2015年9月14日由LIGO探测到的引力波。

Events Leading to Observed Gravity Wave Signal

These descriptive images from the LIGO Educator's Guide depict models of the events leading to the LIGO observations of gravity waves on September 14, 2015.

Artist's depiction of the merger process of two black holes, accompanied by the actual waveforms detected by LIGO Hanford and Livingston detectors. Credit: SSU E/PO Aurore Simonnet

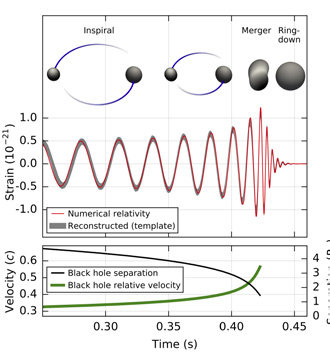

GW150914 models. Credit: LIGO GW150914 模型。版权：LIGO

The gravitational waves for two coalescing black holes was compared to the gravitational wave signal from LIGO and was found to be very similar. 两个并合黑洞的引力波与LIGO探测到的引力波信号相比，发现非常相似。

Comments on the Model of the Gravity Wave Event

The model of the observed gravitational wave event suggests the coalescing of two black holes of masses 29 and 36 solar masses. The

The times between the centers of the last few peaks were scaled as shown. The Science News article says that in the 0.2 seconds before the coalition of the two bodies the frequency increased from 17 to 75 revolutions per second. 最后几个峰之间的时间如图所示被缩放了。《科学新闻》文章指出，在两个天体联合的0.2秒之前，频率从17赫兹增加到了75赫兹。

The model suggests that the final black hole is about 62 solar masses, so that 3 solar masses were converted to energy in the gravitational waves. Considering that about 1 gram of mass conversion powered the Hiroshima bomb, this is hard to visualize. The team's comparison was to suggest that the power was over 50 times the total light output of the universe.

The 0.007 second interval between the detection of the gravitational waves at Livingston and Hanford is quite significant. That corresponds to about 2100 km at the speed of light, so correlates well with the presumption that gravity waves made up of gravitons travel at the speed of light, being massless.

Gravity Waves from Merging Neutron Stars

Images from LIGO site.

From the press release from the LIGO Lab: "For the first time, scientists have directly detected gravitational waves - ripples in space-time - in addition to light from the spectacular collision of two neutron stars. This marks the first time that a cosmic event has been viewed in both gravitational waves and light. The discovery was made using the U.S.-based Laser Interferometer Gravitational-Wave Observatory (LIGO); the Europe-based Virgo detector; and some 70 ground- and space-based observatories."

"As these neutron stars spiraled together, they emitted gravitational waves that were detectable for about 100 seconds; when they collided, a flash of light in the form of gamma rays was emitted and seen on Earth about two seconds after the gravitational waves. In the days and weeks following the smashup, other forms of light, or electromagnetic radiation - including X-ray, ultraviolet, optical, infrared, and radio waves - were detected."

"The gravitational signal, named GW170817, was first detected on August 17, 2017 at 8:41 a.m. Eastern Daylight Time; the detection was made by the two identical LIGO detectors, located in Hanford, Washington, and Livingston, Louisiana. The information provided by the third detector, Virgo, situated near Pisa, Italy, enabled an improvement in localizing the cosmic event. At the time, LIGO was nearing the end of its second observing run since being upgraded in a program called Advanced LIGO, while Virgo had begun its first run after recently completing an upgrade known as Advanced Virgo."

The LIGO data indicated that the merger was at the relatively close distance of about 130 million light years. The inspiraling objects were estimate to be in the range of 1.1 to 1.6 solar masses, so they were in the range of neutron star masses, and not as large as black holes. Gamma ray bursts were detected by the Fermi space telescope and the Integral gamma-ray observatory operated by the European Space Agency. For years it has been suspected that observed short gamma-ray bursts were produced by neutron star mergers, but this was the first direct correlation.

"Observations made by the U.S. Gemini Observatory, the European Very Large Telescope, and the Hubble Space Telescope reveal signatures of recently synthesized material, including gold and platinum, solving a decades-long mystery of where about half of all elements heavier than iron are produced." This research has added to the picture of the synthesis of heavy elements, suggesting that some of the heavy elements that have been attributed to supernovae are instead formed in neutron star mergers. "

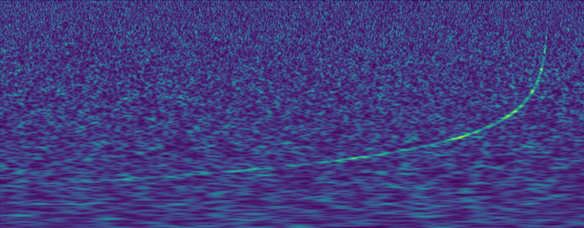

This spectrogram from the LIGO site shows the "chirp" or increasing frequency signal as the neutron stars came closer to each other, producing higher frequency as they circle faster.

An additional contribution from this detection of gravity waves is the provision of a value for the Hubble Constant that is independent of the main distance ladder used to determine cosmic distances. From NASA's LAMBDA coalition comes the following description: "Recent advances in gravitational wave (GW) detection technology provide an analysis approach independent of the cosmic distance ladder. The first estimate of the Hubble constant using a GW source detection is a joint effort of the LIGO/Virgo teams (Abbott et al. 2017), combined with collaborative followup observations identifying the optical counterpart of the source. In this determination, the amplitude of gravitational waves resulting from the merger of a binary neutron star system are analyzed to determine the luminosity distance to the system, and a cosmological redshift obtained from optical identification of the source host galaxy. Degeneracy between the computed luminosity distance and the binary orbital inclination angle is the primary source of uncertainty; the value obtained is H0 = 70.0-8+12. Future GW source detections should provide tighter constraints."
